Accurate and Productive

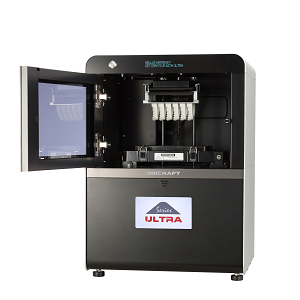

MiiCraft Ultra series printer enables high resolution and accurate printing without sacrificing productivity and quality. With its large build platform, it gives the printing enthusiast the ability to print more models in one single printing session or one single high resolution model. MiiCraft Ultra series printer is capable building models up to 150*84mm @ 78um or 57*32mm @30um with minimum thickness per layer at 5um. This makes the MiiCraft Ultra series printer ideal for jewelry industry, dental industry and micro structure applications.

ItemUltra 150Ultra 125Ultra 100Ultra 80Ultra 50
Area(mm)150x84.4x120125x70x120102x57.5x12080x45x12057x32x120
XY Res.78um65 μm 53 μm 41.5 μm 30 μm
Wavelength(LED)385/405 nm wavelength are available for all configurations
MiiCraft_05
MiiCraft_04
jewlery sets 2

Ultra-printer-300x300

From resin to model : Digital Optics Technology

The precision of projected pattern will enormously affect the quality of printed outputs. MiiCraft Ultra series utilize DLP technology, the high resolution chip solution, combines with sophisticated optics sets, to project accurate and uniform images to the building platform, and bring out the details of the model.

casting process


Personalization, Digitalization, Localization

3D printing shorten the product development period and cost, enabling new design and customized design been manufactured. With digitalized 3D file, manufacture can happen in any suitable place, reducing the transportation fee. 3D printing brings lots of possibilities to the world.

earth-1195666_1920 (1)

Flexible User Control setting for various applications

To let our user explore the best way for different prints, MiiCraft Ultra series printer let the user have the ability to control many parameter settings, including curing time, layer speed…and the peeling steps with very simple and intuitive user interface. MiiCraft provides various types resin for printing, casting, and research. It is also compatible to 3rd party resin.

2016-03-23_173624
Engineering mode

Accessories for MiiCraft Ultra & 125 seriesDescription
PickerPicker
Picker is the build platform of print-outs. It’s important to make sure the platform surface is clean before starting printing.
teflon tankResin tank
Resin tank is one of the key factors to make a successful printing. It needs to be replaced regularly, depending on the frequency of printing. MiiCraft also launched premium resin tank, that can stand longer life. Premium resin tank is optional for user.
Scaper knif2Putty knife
Use putty knife to scrape away the excess printed model on the picker.
